YH 2088 input type liquid level transmitter

1.Brief introduction

YH2088 input type liquid level transmitter adopts high performance dispersing silicon pressure sensor as measuring element.

2.Product features

Advanced circuit treatment technology, stable performance and high flexibility;
Multiple measurement range, maximum measurable range is 200m;
316L stainless steel isolation diaphragm;
Suitable for various measurement medium;
Flexible configuration;
Integrated and split type;
Reversed polarity and excess voltage protection;
Shock resistance and lightning protection design;
On-site adjustment of measurement range;
Broad corrosion range;
Powerful overload and antijamming capability;

3.Product uses

Industrial liquid level measurement and control, urban water supply, sewage treatment, petroleum, chemical, electric power, hydrologic monitoring, reservoir, dam, hydropower construction

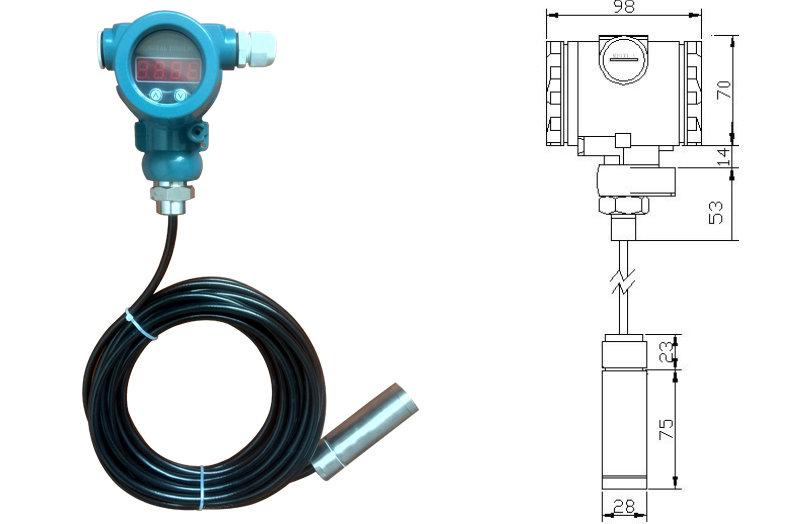

4.Physical dimension and structure

　　　　　　　　　　　　　　　　　　YH2088投入式外形结构示意图
5.Technical parameters
1. measurement form and range: 0～1～200mH2O;
2. permitted overload: 2 times scale span pressure;
3. operating temperature: -20～80℃，temperature compensation: -10～70℃，storage temperature: -40～80℃;
4. accuracy: 0.25％FS(typical) 0.5％FS(maximum);
5. stability error: 0.25％FS(typical)， 0.5％FS(maximum;
6. temperature drift coefficient: 0.01%FS(no less than 5mH2O)0.03%FS(less than 5mH2O);
7. output signal : (4～20)mA(2/3 wire).(0～10/20)mA.(0～5)V.(1-5)V.(0～10)V;
8. power supply: 15～36VDC(nominal voltage 24VDC);
9. current output＜(U-15V)/0.02A.current output＞5K;
10. shell material: alloy aluminum
11. film blade: 316L stainless steel:
