Pressure/differential pressure transmitter

　

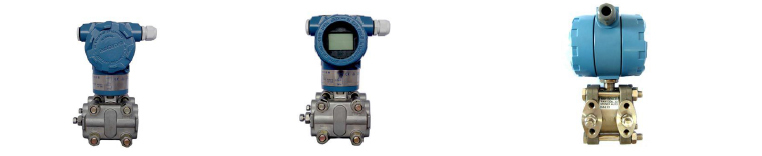

YH1151 pressure/differential pressure transmitter
1.Brief introduction

YH1151 pressure/differential pressure transmitter adopts all key components and fittings from abroad. It has features of advanced design, complete specifications and simple installation.

2.Product features
1. excellent measurement performance, for measurement of differential pressure, pressure, liquid level and flow;
2. high accuracy: digital accuracy+(-)0.05%; simulation accuracy+(-)0.5%～+(-)0.1%F·S;
3. adjustable range and null point;
4. positive transfer: 500%.negative transfer 600%;
5. fine stability: 0.25% 60 months;
6. overpressure resistant;
7. solid sensor design;
8. full series of integrated structure, excellent interchangeability;
9. selective material for contacting medium;
10. low pressure casting aluminium alloy shell;
11. measurement speed: 0.2S
12. full stainless steel flange, easily for installation;

3.Technical index
1. application object: liquid, gas, steam
2. output signal : 4～20mADC
3. voltage: 12-36V DC; standard value 24VDC;
4. environment temperature: -25～70℃(ordinary transmitter)，-15～70℃(with indicator)
5. measurement temperature: -40-104℃;
6. storage temperature: -40～100℃;
7. relative temperature: 0-100%RH;
8. level of protection: dⅡBT4，iaⅡCT5 ;
9. power supply influence: ±0.005%/V;
