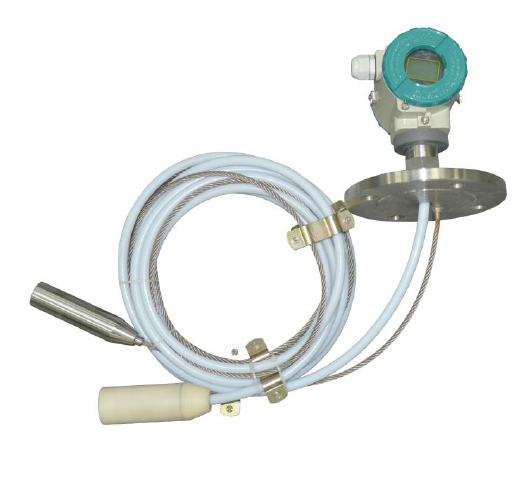

YH2631 radio frequency admittance liquidometer

YH2631 radio frequency admittance liquidometer



1.Brief introduction

YH2631 adopts anti-sticky circuit. It is reasonable instrument for measurement of liquid, solid, interface and foam.

2.Product features

Patented shield technology;
Simple button adjustment;
Frequency inversion technology;
Providing higher resolution ratio;
2-wire circuit power supply: 4-20.20-4mA;
High temperature resistant, high pressure resistant;
Detectable of any materials, such as, refined oil, gasoline and etc.

3.Technical index
1. power supply: 24VDC
2. maximum operating current: MAX100mA
3. 4～20mA output impedance : MAX750Ω
4. delay time: 0～30〞 seconds continuously adjustable
5. accuracy: ±0.5%
6. material temperature: -184℃～260℃
7. RS485 communication port//digital display: yes
8. adjustment method: button
9. circuit temperature resistance: -40℃～80℃
10. induction degree: 0.5pf
11. power-lossing protection: high and low mode
12. shell: IP65
