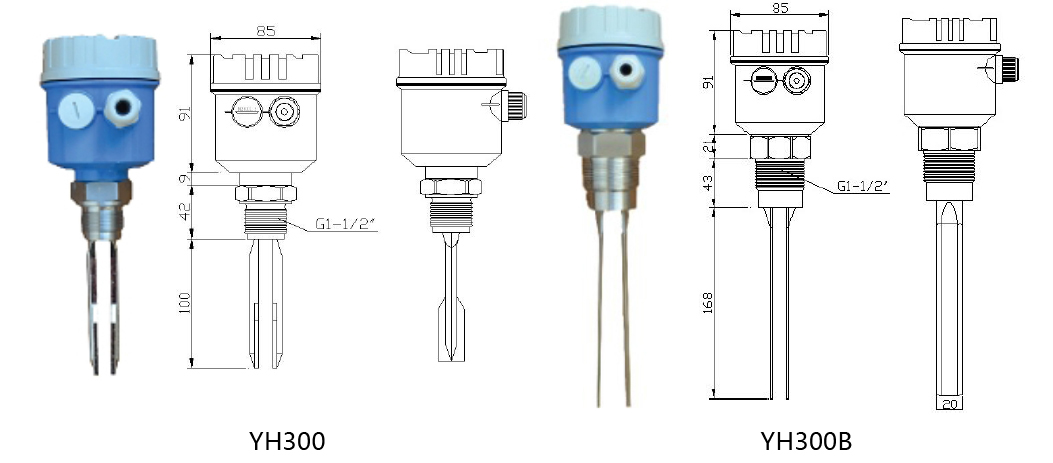

YH300/300B tuning fork material (liquid) level switch

1.Brief introduction

Tuning fork material (liquid) level switch can be applied in complicated working condition. And it is widely applied product due to high reliability.

Features

Automatic learning of different medium density;
Full metal structure, long durability;
Wide vibration range;
Suitable for liquid, particle and concentrated or sticky material;

Application field

Tuning fork material (liquid) level switch is suitable for chemical, plastic, pharmaceutical, feed, environmental protection, water treatment, cement, chemical fertilizer industries.

Technical index
1.specification of connection mouth: G1-1/2〃
2.specification of inlet mouth: M20×P1.5
3.measurement medium: liquid, powder, solid
4.application range: liquid, powder, solid
5.voltage: 20～60VDC 20～250VAC 50/60Hz
6.switching time: 3s
7.environment temperature: -40～70℃
8.storage temperature: -40～85℃
9.medium temperature: -40～150℃
10.operation pressure: -1～40bar
11.connection type: G1-1/2〃, casting insert, flange
12.shell material: aluminium alloy
13.fork material: stainless steel304/ stainless stee l316

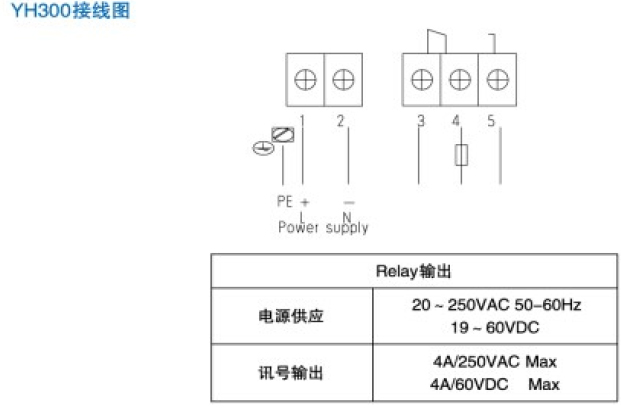

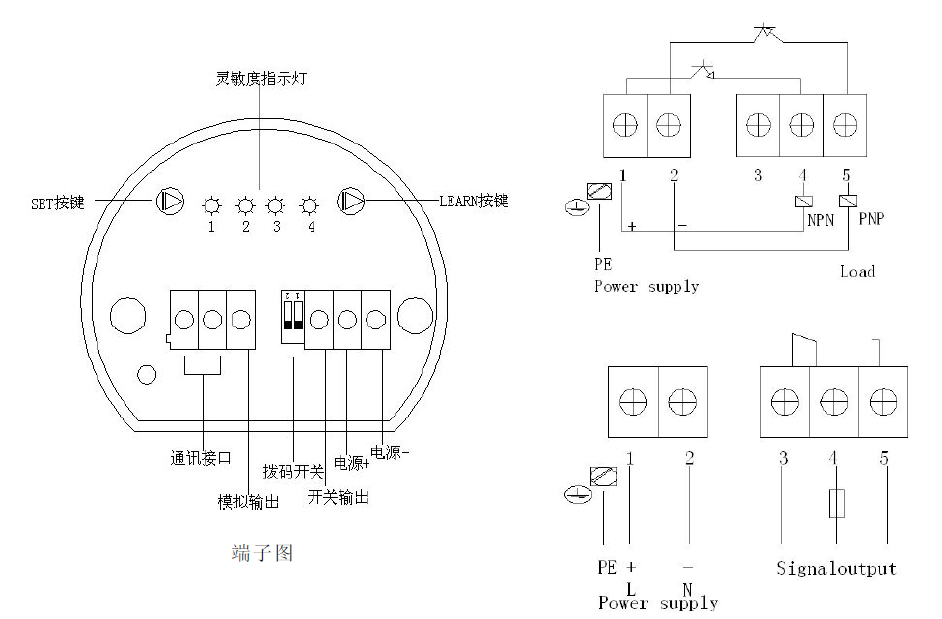

Relay		NPN/PNP
Power supply	20～250VAC 50-60Hz 19～60VDC	Power supply	20～60VDC
Signal output	4A/250VAC Max 4A/60VDC Max	Signal output	400mA Max
