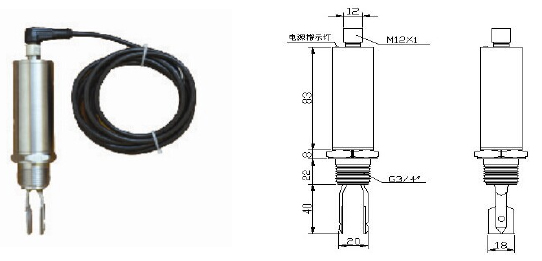

YH301/301B small size tuning fork material (liquid) level switch

Features

Excellent adaptability: no influence by different electric index and material density, structure, stirring, bubble, vibration, viscosity, high temperature, high pressure;
Free of maintenance: in whole process, no need of maintenance;
No need of adjustment: not influenced by medium

Application field

◆drink water, alkaline mineral water, paper pulp, glue, dyes
◆mud, aqueous alkali, acid solution
◆beer, drink
◆solid powder with fine liquidity

3.Technical index
1.medium temperature: -20℃～80℃
2.environment temperature: -20℃～60℃
3.environment humidity: ≤95%RH
4.measurement medium : liquid, powder or particle
5.measurement medium density: solid ≥0.1g/cm3; liquid ≥0.7g/cm3;
6.measurement particle size: ≤10mm
7.maximum liquid viscosity: ＜1000mm2/S
8.measurement medium angle of repose: ≥200
9.pressure range: ≤1MPa
10.material of shell and fork: 1Cr18Ni9Ti
11.level of protection: IP65
12.connection type: G1 3／4screw thread; flange(

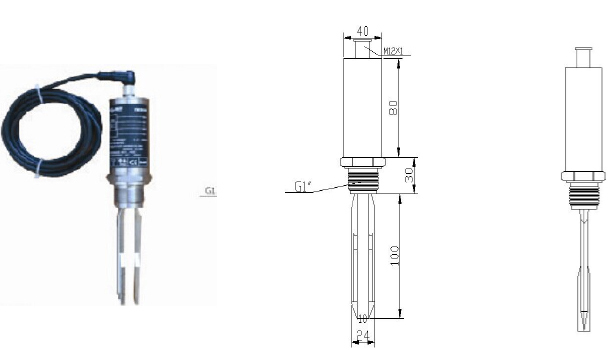

YH301B tuning fork material (liquid) level switch

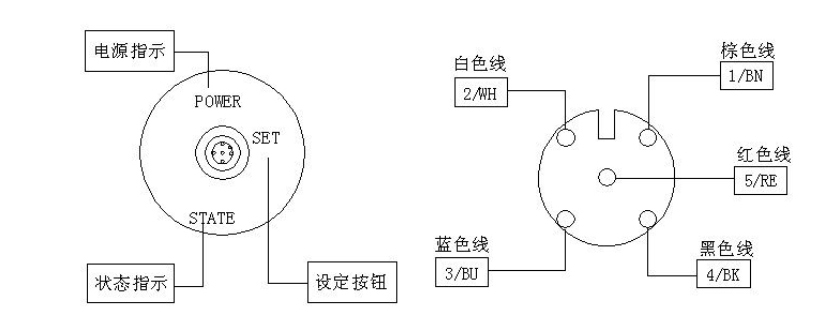

YH301B terminal

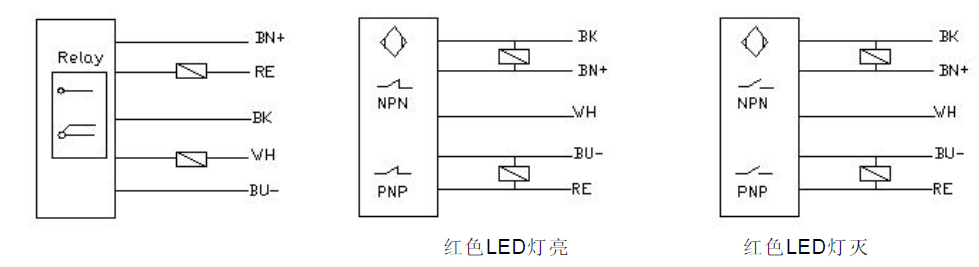

LFT301B connection method
