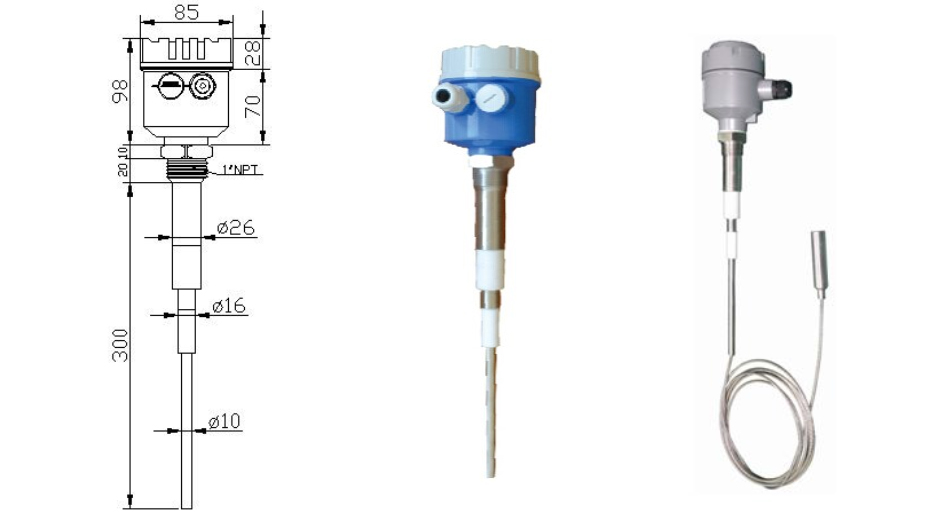

RF admittance level switch

1.Brief introduction
NL2000 RF admittance level switch is new generation product of capacitive material location switch. Compare with similar product, it has higher stability.

2.Product features
Excellent universality, widely applied for testing of various material, such as, fly ash, particle, powder, liquid and sticky material;
Excellent adhesion resistance: special circuit design and sensor structure;
Free of maintenance;
Powerful function;
Anti-interference: contacting measurement, excellent anti-interference strength;
Power-off protection: normally open, close;
Reliable measurement;

3.Technical index
2． delay: 0~30〞 seconds continuously adjustable
3． power supply: 220VAC or,24VDC
4． induction degree: 0.5pF
5． material temperature: -184℃ to 380℃
6. circuit temperature resistance: -40 ℃ to 80℃

4.wiring diagram
